High-speed roll-up door EFA-SRT® MHT Compact.

The tailor-made solution.

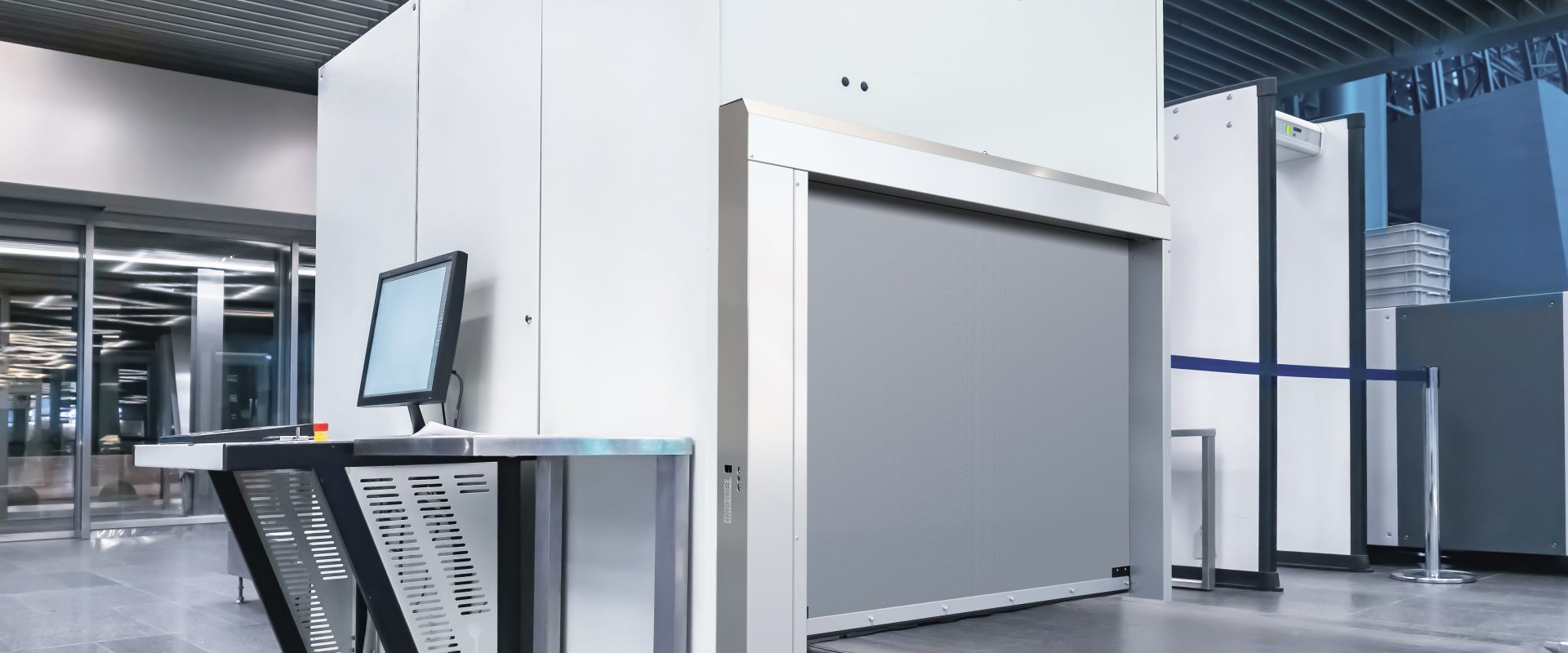

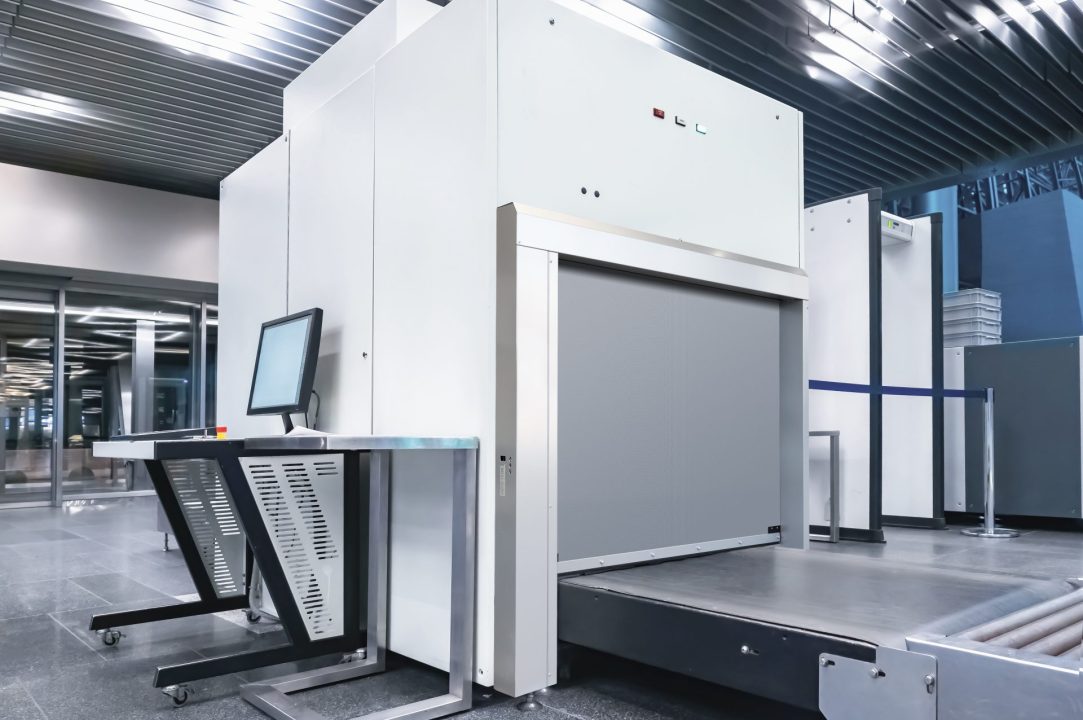

With up to 500,000 operating loads per year, the new EFA-SRT® MHT Compact manages the highest number of opening and closing cycles on the market. The door also impresses with its compact design using controls which are integrated into the frames and a self-supporting construction. As a result, it can be flexibly and easily integrated into complex systems, e.g. baggage check-in at airports.

EFA-SRT® MHT Compact at a glance:

  • Door system for industrial and commercial purposes in conveyor technology
  • Control fully integrated into design
  • Self-supporting frames due to floor fixing
  • 3 cycles per minute
  • Opening up to 1.5 m/s
  • Up to 500,000 operating cycle p.a.
  • Standard sizes up to w=1,600 mm, h=1,600 mm

Details

Highest number of operating cycles Open

Thanks to its robust and durable design, the door effortlessly manages up to 500,000 cycles per year. This is the highest number of load changes on the market.

Self-supporting construction Open

For use in complex systems, EFAFLEX offers a compact and tailor-made solution with the new EFA-SRT® MHT Compact high-speed roll-up door. Due to its self-supporting construction and the control integrated into the frame, it can also be installed in cramped, or limited space locations. In addition, depending on the requirements, different curtain sections are possible for the conveyor technology.

Modern plant design Open

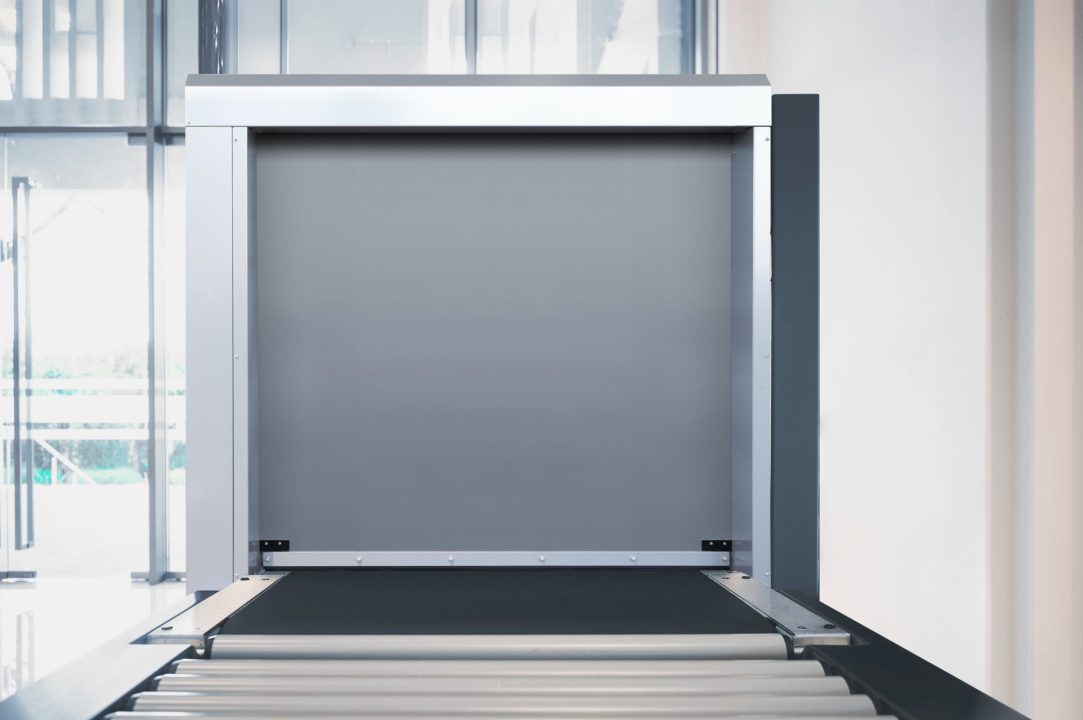

Due to its easy integration and system design, the EFA-SRT® MHT Compact is ideally suited for use on automatic conveyors or transport systems. The roll-up door ensures a safe and fast material flow and is mainly installed in the airport area. It not only impresses with its modern design, but also with its compact structure: The high-speed roll-up door has a complete cover and has no projections or protruding screws.
